Computer Vision · Hackathon
BitsXLaMarató — Aorta
Winning project of the BitsXLaMarató 2022 hackathon. Run the aorta pipeline live: abdominal ultrasound → Mask R-CNN segmentation → 3D mesh reconstruction → aortic diameter estimation.
CV Pipeline
BitsXLaMarató hackathon · TV3 La MaratóUltrasound video
Load study, extract frames
Mask R-CNN
Instance segmentation per frame
Mask stack
Binary TIFFs for 3D recon
3D mesh
ISO surface with Meshlib / Open3D
Diameter
Contour analysis + heuristics
Mask R-CNN (PyTorch)OpenCVMeshlib / Open3DTkinter GUICustom annotationsCUDA inference
Simulated inference

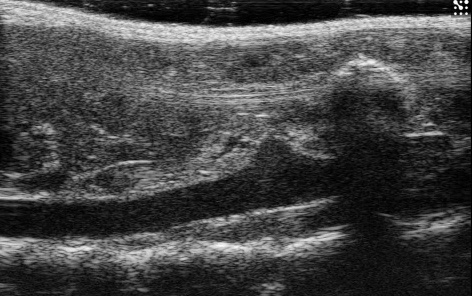

Browser mock · real B-mode frame
Mimics the real Mask R-CNN inference on a B-mode frame from the rat aorta dataset. The red overlay is a browser mock, not model output.
Diameter explorer
Educational risk visualization
The app estimates aortic diameter from segmented contours. Drag to see how a measurement maps to educational risk buckets — not for diagnosis.
Max outer diameter28 mm
Typical range
Many adult abdominal aortic diameters fall well below 30 mm.
Illustration only. AAA management follows local guidelines and imaging context.
Project screenshots
Team
Pol Casacuberta · Tatiana Meyer · Pablo Vega · Ton Vilà
